Solenoid Valve 1/8"PT Pneumatic AirTAC 4V110-06 Air 12V/24V/110V/220V Single Coil Pilot-Operated Electric 2 Position 5 Way Connection Type (4V110 PT1/8, DC24V)
Product details
| Management number | 222649882 | Release Date | 2026/05/04 | List Price | US$16.00 | Model Number | 222649882 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1.Pilot-oriented mode:Internal pilot or external pilot 2.Structure in sliding column mode good tightness and sensitive reaction. 3.Three position solenoid valves have three kinds of central function for your choice.4 Double control solenoid valves have memory function. 5.Internal hole adopts special processing technology which has little attrition friction. low start pressure and long service life 6.No need to add oil for lubrication.7 .It is available to form integrated valve group with the base to save installation space 8.Affiliated manual devices are equipped to facilitate installation and debugging 9.Several standard voltage grades are optional

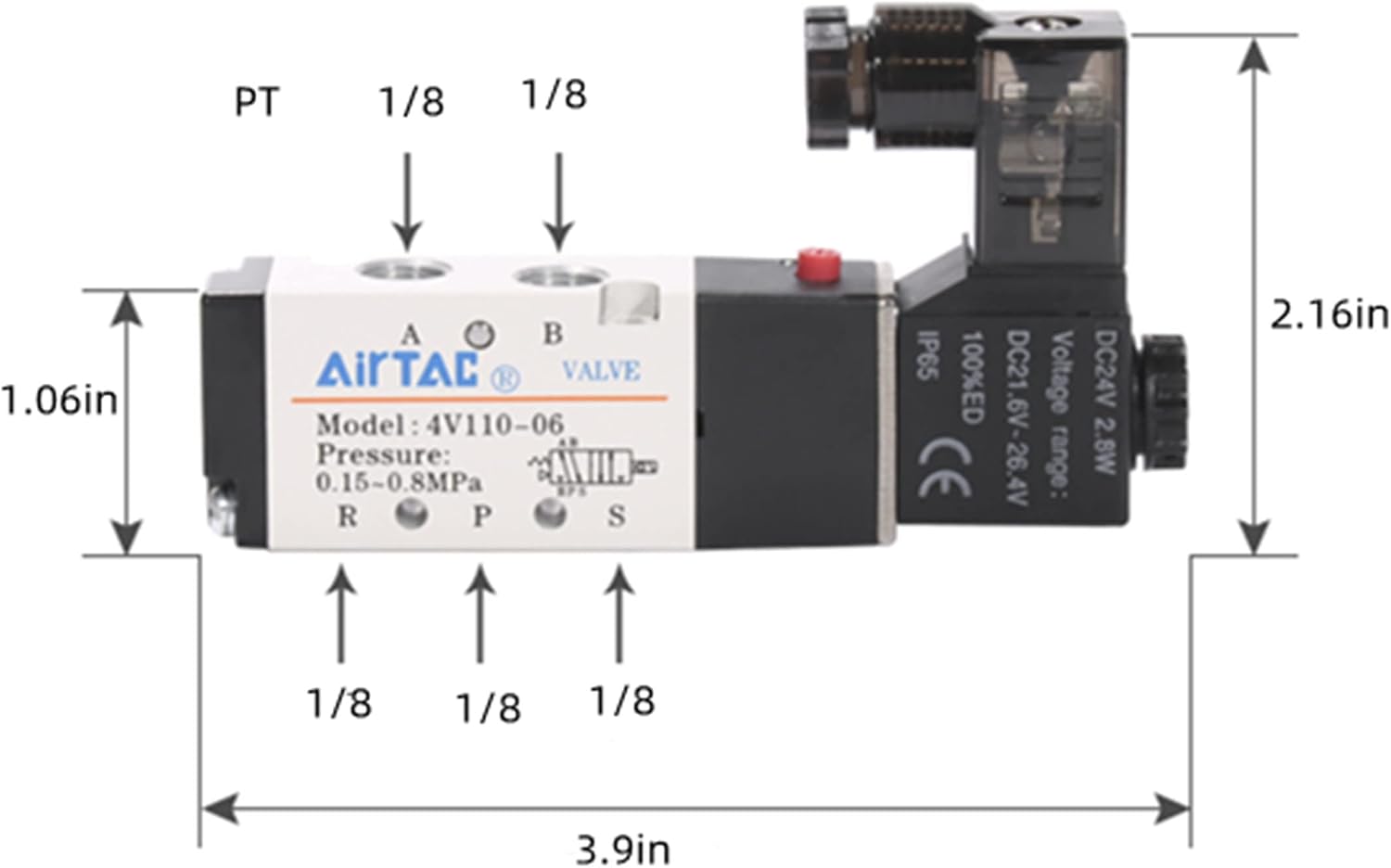

- Model：4v110-06 Product Size:3.9 x 2.2 x 0.7 inches Weight :0.44lb
- Fluid ： Air Port size：PT 1/8" Vent Silencer：PT1/8''
- Voltage：DC24V Working Pressure:21~114Psi(0.15-0.8MPa)
- Maximum action frequency: 5 times per second
- Working temperature: -20-70℃ Material: Aluminum Alloy
| Size | 4V110 PT1/8 |
|---|---|
| Brand Name | AirTACDINGJU |
| Unit Count | 1.0 Count |
| Valve Type | Solenoid Valve |
| Thread Size | PT 1/8 inches |
| Thread Type | PT |
| Manufacturer | AirTACDINGJU |
| Model Number | 4V110 PT1/8, DC24V |
| Material Type | Aluminum |
| Connector Type | Threaded |
| Exterior Finish | Aluminum |
| Item Dimensions | 3.9 x 2.2 x 0.7 inches |
| Number of Ports | 5 |
| Maximum Pressure | 114 Pound per Square Inch |
| Inlet Connection Size | 1/8 Inches |
| Inlet Connection Type | PT thread |
| Outlet Connection Size | 1/8 Inches |
| Outlet Connection Type | PT thread |
| Manufacturer Part Number | 4V110 PT1/8, DC24V |
