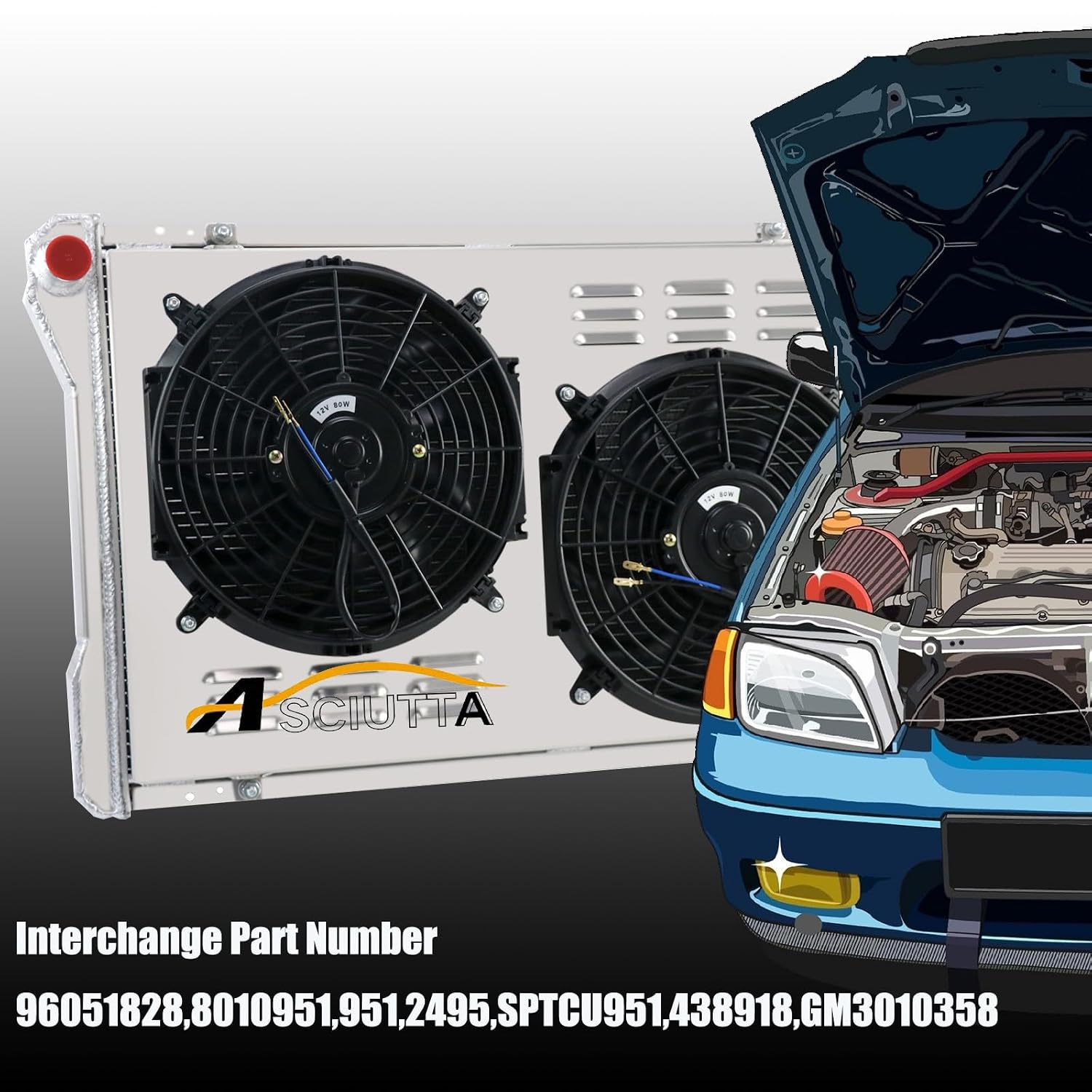

4 Row Aluminum Radiator for 1982-1992 Chevy Camaro Pontiac Firebird 5.0L 5.7L V8 Full Aluminum Radiators + Shroud Fan + Thermostat Relay Kits

Vehicle Fitment 1982-1992 Chevy Camaro 5.0L 1982-1984, 1986 Chevy Camaro 2.5L 1982-1984, 1986-1989 Chevy Camaro 2.8L 1982-1992 Pontiac Firebird 5.0L 1982-1989 Pontiac Firebird 2.8L 1982-1986 Pontiac Firebird 2.5L 1987-1992 Chevy Camaro 5.7L 1987-1992 Pontiac Firebird 5.7L 1989 Chevy P20 5.7L 1989-1990 Chevy P30 5.7L 1989 Pontiac Firebird 3.8L 1990-1992 Chevy Camaro 3.1L 1990-1992 Pontiac Firebird 3.1L This Listing Is Including 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details Core Row: 4 Row Core Material: Full Aluminum Tank Material: Full Aluminum Radiator Cap: Included Radiator Flow: Cross Flow Mounting Type: Saddle OEM Style Brass Petcoke Drain CNC machined filler neck and cap High Performance Racing Spec FAN Specification Maximum Fan CFM: 2300±200 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans Part Number 951 CU951 CC951 RAD951 DPI951 MC951 52453813 1605-370193 RA1029 0918A 918 731880 96051828 8010951 951 2495 SPTCU951 438918 GM3010358

• Core Size: 26-1/4" W x 16-3/4" H x 2-1/2" T; Overall Size: 30-1/2" W x 19-3/4" H
• Inlet/Outlet: 1-3/5" & 1-1/4"
• Trans Cooler Details: 1/2" 20 STRAIGHT THREAD G1/4
• Performance: Made of high quality Aircraft AA5052 grade aluminum Construction. At least 35% more efficient than stock one.
• Leading-edge welding craftsmanship, CE approval. Innovative engineering, manufacturing technology and quality control ensure superior quality
